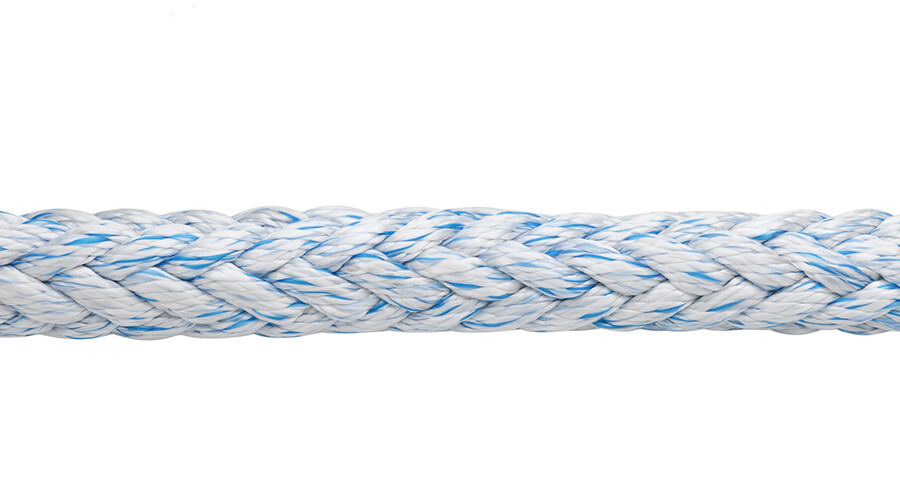

The Pilot Composite model is a 12 strands rope made of high tenacity multifilament polypropylene fibers combined with polyester fibers.
Its anti-rotation construction gives it an integral resistance superior to the ropes of 3, 4 or 8 strands also made of Composite. The result is a very flexible and highly buoyant rope, ideal for maritime tasks such as mooring, anchoring, fishing and shipyard works.
At Folch Ropes we manufacture it in diameters from 12 m/m to 56 m/m.
- Raw material: Polypropylene Multifilament and Polyester.
- Specific gravity 0.98.
- Approximate water absorption from 0,5 to 2%.
- Flotability.
- Good flexibility.
- Minimum UV degradation.
- Medium abrasion resistance.
- Spliceable
- Antigiratory.
On request, it can be supplied with:
- Thimbles
- Spliced eyes
Other colors on request.
- Raw material: Polypropylene Multifilament and Polyester.
- Specific gravity 0.98.
- Approximate water absorption from 0,5 to 2%.
- Flotability.
- Good flexibility.
- Minimum UV degradation.
- Medium abrasion resistance.
- Spliceable
- Antigiratory.
On request, it can be supplied with:
- Thimbles
- Spliced eyes
Other colors on request.
Diameter m/m | Weight gr/mt | Breaking load daN | Breaking load kgs |
12 | 73 | 3036 | 3096 |
14 | 99 | 4049 | 4129 |
16 | 130 | 5195 | 5297 |
18 | 164 | 6473 | 6601 |
20 | 203 | 7880 | 8035 |
22 | 245 | 9414 | 9600 |
24 | 292 | 11075 | 11293 |
26 | 343 | 12859 | 13113 |
28 | 398 | 14767 | 15058 |
30 | 456 | 16797 | 17128 |
32 | 519 | 18948 | 19322 |
34 | 586 | 21219 | 21637 |
36 | 657 | 23608 | 24073 |
38 | 732 | 26115 | 26630 |
40 | 811 | 28739 | 29306 |
42 | 894 | 31480 | 32101 |
44 | 982 | 34336 | 35013 |
46 | 1073 | 37307 | 38043 |
48 | 1168 | 40392 | 41188 |
50 | 1268 | 43590 | 44449 |
52 | 1371 | 46901 | 47826 |
54 | 1478 | 50325 | 51317 |
56 | 1590 | 53860 | 54922 |
